H20 Timber Beam
Kylin Formwork supplies H20 timber beams, film faced plywood and plastic faced formwork for building construction, high-rise projects, bridges and infrastructure applications.
01

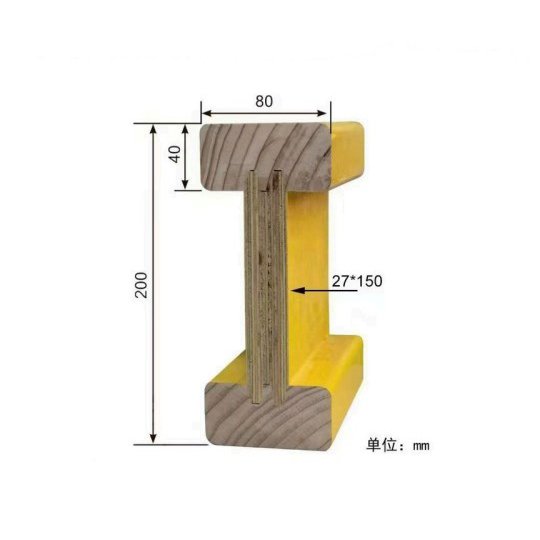

H20 Timber Beam
- Overall beam height: 200mm
- Top and bottom flange thickness: 40mm
- Flange width: 80mm
- Web material: Poplar & eucalyptus composite web, web thickness: 27mm
- Unit weight: approx. 4.8kg per meter
- Adhesive: White latex
- Length specification: Custom cuttable from 1m to 12m
- Color: Medium yellow
- Allowable deflection: 1/500
- Modulus of Elasticity: E = 10200 N/mm²
- Shear bearing capacity: 34.45kN
- Bending bearing capacity: 21kN·m
- Top and bottom flange thickness: 40mm
- Flange width: 80mm
- Web material: Poplar & eucalyptus composite web, web thickness: 27mm
- Unit weight: approx. 4.8kg per meter
- Adhesive: White latex
- Length specification: Custom cuttable from 1m to 12m
- Color: Medium yellow
- Allowable deflection: 1/500
- Modulus of Elasticity: E = 10200 N/mm²
- Shear bearing capacity: 34.45kN
- Bending bearing capacity: 21kN·m
02

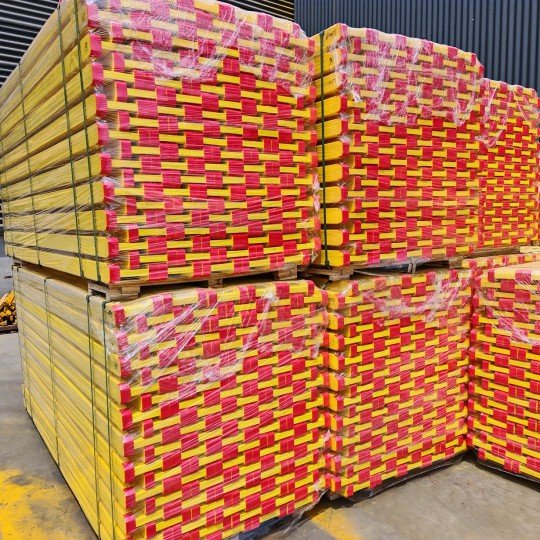

H20 Timber Beam
- Overall beam height: 200mm
- Top and bottom flange thickness: 40mm
- Flange width: 80mm
- Web material: Poplar & eucalyptus composite web, web thickness: 27mm
- Unit weight: approx. 4.8kg per meter
- Adhesive: White latex
- Length specification: Custom cuttable from 1m to 12m
- Color: Medium yellow
- Allowable deflection: 1/500
- Modulus of Elasticity: E = 10200 N/mm²
- Shear bearing capacity: 34.45kN
- Bending bearing capacity: 21kN·m
- Top and bottom flange thickness: 40mm
- Flange width: 80mm
- Web material: Poplar & eucalyptus composite web, web thickness: 27mm
- Unit weight: approx. 4.8kg per meter
- Adhesive: White latex
- Length specification: Custom cuttable from 1m to 12m
- Color: Medium yellow
- Allowable deflection: 1/500
- Modulus of Elasticity: E = 10200 N/mm²
- Shear bearing capacity: 34.45kN
- Bending bearing capacity: 21kN·m
03

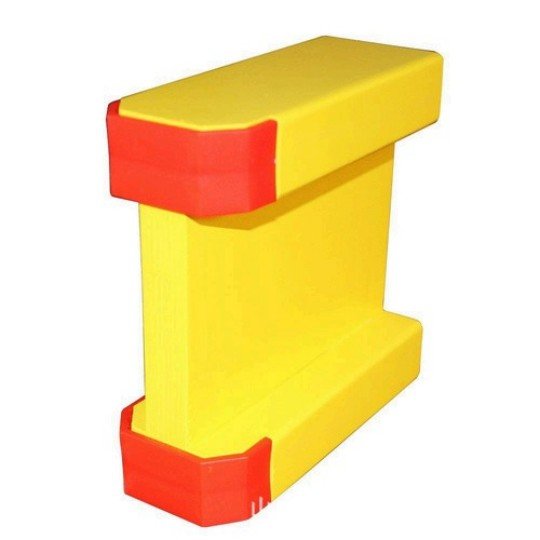

small plastic end caps
small plastic end caps, large plastic end caps, and steel end caps.
End caps protect the beam ends from impact and moisture,
helping to increase the service life of the timber beams.
04

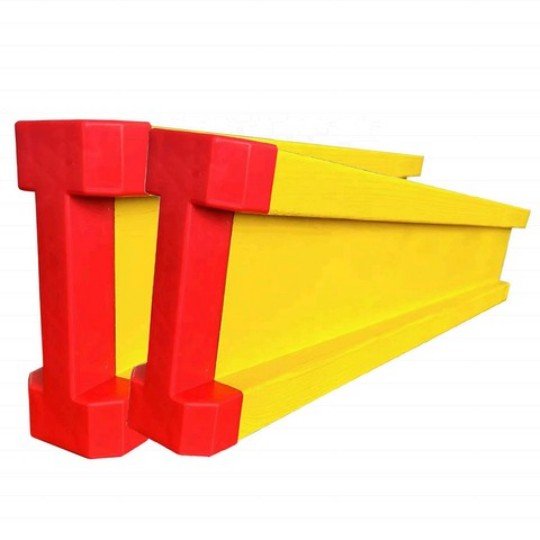

large plastic end caps
small plastic end caps, large plastic end caps, and steel end caps.
End caps protect the beam ends from impact and moisture,
helping to increase the service life of the timber beams.
05

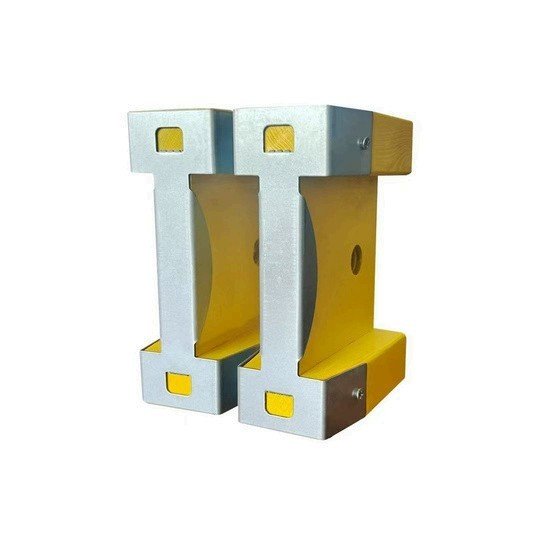

steel end caps
small plastic end caps, large plastic end caps, and steel end caps.
End caps protect the beam ends from impact and moisture,
helping to increase the service life of the timber beams.
Applications
Vertical Wall Formwork
H20 beams are widely used as vertical walers to support wall formwork, ensuring high stability and
precise concrete dimensions during pouring.
- Superior Load‑bearing Strength
- High Reusability & Long Service Life
- Global Engineering Support Network
- Cost‑Effective For Large‑scale Works
- 24/7 Global Technical Assistance
- Multi‑scene Project Adaptability
- Precise Concrete Casting Dimension
- Light‑Weight For Easy Handling
- Outstanding Environmental Durability
Bridge & Infrastructure Projects
Ideal for heavy-duty applications like bridge decks and tunnels, providing superior load-bearing
capacity and durability in harsh environments.
- Superior Load‑bearing Strength
- High Reusability & Long Service Life
- Global Engineering Support Network
- Cost‑Effective For Large‑scale Works
- 24/7 Global Technical Assistance
- Multi‑scene Project Adaptability
- Precise Concrete Casting Dimension
- Light‑Weight For Easy Handling
- Outstanding Environmental Durability
High-rise Building Construction
Essential for skyscraper core walls and columns, offering lightweight handling and high reusability
to speed up the construction cycle.
- Superior Load‑bearing Strength
- High Reusability & Long Service Life
- Global Engineering Support Network
- Cost‑Effective For Large‑scale Works
- 24/7 Global Technical Assistance
- Multi‑scene Project Adaptability
- Precise Concrete Casting Dimension
- Light‑Weight For Easy Handling
- Outstanding Environmental Durability
Slab Formwork System
Used as primary or secondary beams in slab formwork, creating a safe and efficient support
structure for horizontal concrete casting.
- Superior Load‑bearing Strength
- High Reusability & Long Service Life
- Global Engineering Support Network
- Cost‑Effective For Large‑scale Works
- 24/7 Global Technical Assistance
- Multi‑scene Project Adaptability
- Precise Concrete Casting Dimension
- Light‑Weight For Easy Handling
- Outstanding Environmental Durability
